Descripción

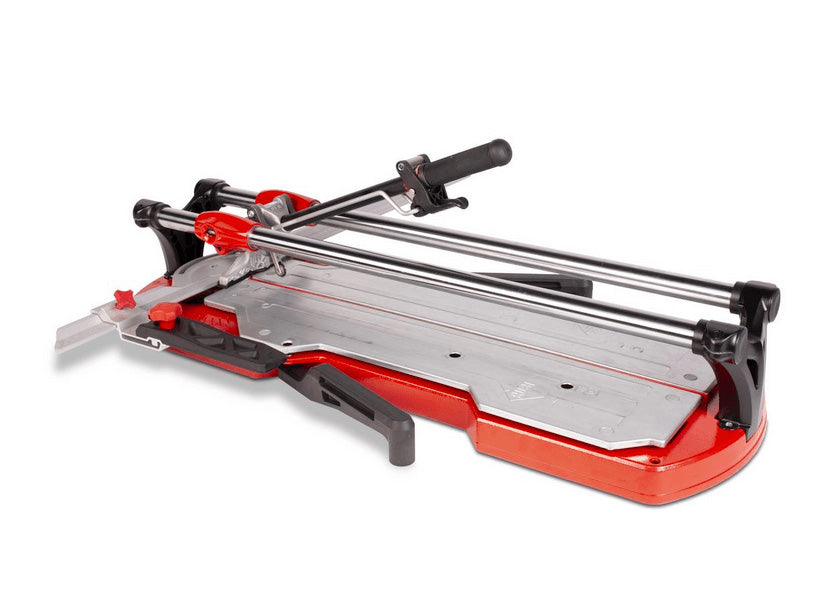

The TX-710 MAX is the ideal solution for intensive and precise cutting of ceramic tiles, specially designed to work with porcelain stoneware and extruded stoneware. Designed for demanding professionals seeking performance, robustness, and ease of use in every project.
KEY FEATURES
- High-precision scoring, even on the hardest materials.
- Optimized system for superior efficiency in every cut.
- Reinforced components for maximum durability and strength.
- MASTER POWER separator with 1,200 kg of power: smooth one-handed operation.
- Ergonomic and robust design for continuous use on site or in the workshop.
COMPATIBLE MATERIALS
Specifically designed for professional cutting of all types of ceramic tiles, including:
- Porcelain stoneware
- Extruded stoneware
- Other medium and high hardness ceramic cladding materials.
TECHNICAL FEATURES
- Ø30 mm tubular steel guides with 2 mm wall thickness.
- Head with extra-long aluminum slides, with self-lubricating friction bushings.
- Movable aluminum separator with plastic protector to avoid marks on delicate surfaces.
- The foot pedal locking mechanism, via ratchet system, and unlocking by trigger, allows scoring and separating with one hand. Increased SPEED of use.
- Enhances PERFORMANCE on both thin and thick materials.
- Improved visibility of the working area for greater precision.
- Reinforced aluminum injection base with central rib for enhanced ROBUSTNESS.
- Galvanized steel floating tables, ideal for more stable cuts.
- Rotating square with central pivot for precise angle cuts.
- Side stop for repetitive and narrow strip cuts.
- Equipped with 2 additional arms for large-format ceramics.
- Handle with soft-grip for greater ERGONOMICS and COMFORT.
- Includes 8 mm and 22 mm EXTREME scoring wheels, compatible with the PLUS range.
-
Supplied with a rigid carrying case for protection and transport.
SPECIFICATIONS
- Cutting length: 71 cm
- Diagonal cutting length: 50x50 cm
- Cutting height: 3-21 mm
- Separator power: 1200 kg
-
With case: Yes
- Weight with case: 13.3 kg
